Getting started¶

Installation¶

Build the plugin:
```
npm install && npm run build
```

Copy to your vault:

mkdir -p /path/to/vault/.obsidian/plugins/property-validator
cp main.js manifest.json styles.css \
   /path/to/vault/.obsidian/plugins/property-validator/

Enable in Obsidian: Settings > Community plugins > Property Validator

Quick start¶

Create a schema and validate a note in 5 minutes.

1. Set the schema directory¶

Go to Settings > Property Validator > Settings and set the Schema directory (e.g. System). The plugin creates entities/ and properties/ subdirectories automatically.

Settings tab

2. Create an entity¶

What is an entity?

An entity is a note type — like task, book, or person. It declares which frontmatter fields the note should have.

Open Settings > Property Validator > Entities tab and click Create new entity.

Name: task
Properties: add status (required) and priority (optional)

Create entity

This creates System/entities/task_entity.md:

---
entity_name: task
properties:
  status:
    required: true
  priority: {}
---

See Schema reference > Entity files for all available fields.

3. Create properties¶

What is a property?

A property is a validation rule for a field — it defines what values are allowed.

Open Settings > Property Validator > Properties tab and create two properties:

Status — an enum with allowed values:

Name: status
Type: enum
Allowed values: Backlog, In Progress, Done

---
property_name: status
property_type: enum
allowed_values:
  - Backlog
  - In Progress
  - Done
---

Priority — another enum:

Name: priority
Type: enum
Allowed values: Low, Medium, High

---
property_name: priority
property_type: enum
allowed_values:
  - Low
  - Medium
  - High
---

Create property

See Schema reference > Property files for all available fields and types.

4. Validate a note¶

Open any note and add frontmatter:

---
entity: task
status: In Progress
priority: High
---
# My first task

This note is now validated against the task schema.

Note

The entity field tells the plugin which schema to use. You can change this field name in Configuration.

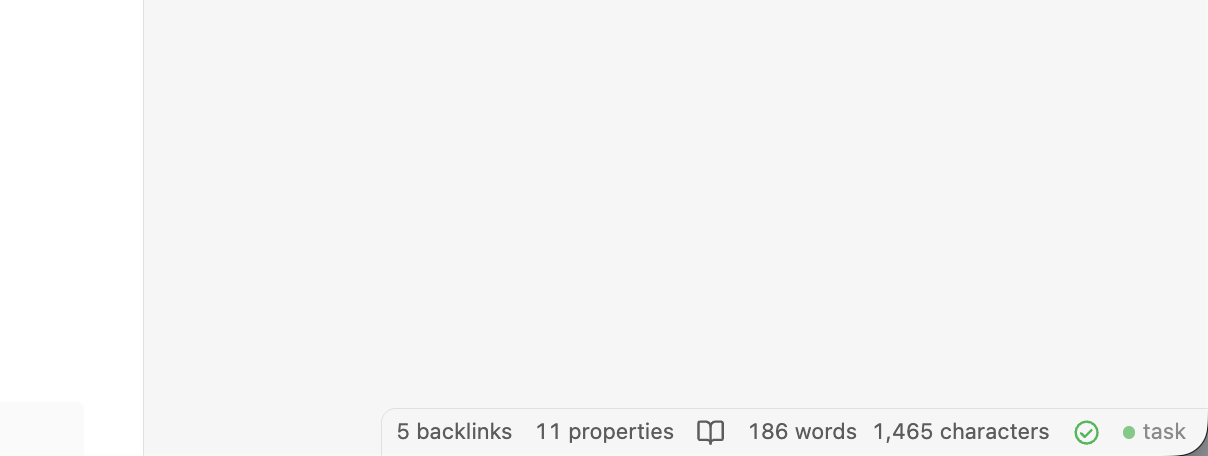

The status bar shows a green dot — the note is valid.

Valid note

5. See validation in action¶

Change status to Urgent and save. The status bar turns red, and the results panel shows:

✗ status: Expected 'Backlog' | 'In Progress' | 'Done', received 'Urgent'

Invalid note

Remove the status field entirely. Since it's required, you get:

✗ status: Required field is missing

6. Validate the whole vault¶

Use Command Palette > Validate vault to scan all files at once. The summary panel shows counts and lists only files with issues.

Vault scan

Next steps¶

Schema reference — all entity and property fields, types, link constraints, inheritance
Configuration — plugin settings and schema management UI
